Our Products
Vehicle
Hardt Full-scale Vehicle (Concept Design Appearance) with description
-
Hardt’s vehicle is designed for high-speed, autonomous operation, offering both passenger and cargo configurations. The passenger vehicle accommodates 40 passengers with 6 doors for efficient boarding, while the cargo version transports 14 Euro pallets with 2 doors. Both models feature a 24m length, 2.5m diameter, and a lightweight carbon fiber monocoque structure for optimal performance
-
Powered by a 3 MW propulsion system with ~90% efficiency, the vehicles achieve speeds up to 700 km/h with 665 kW cruising power consumption. Advanced aerodynamics and magnetic levitation minimize drag (3100 N total), while an autonomous control system ensures smooth acceleration (Max. 2.0 m/s²) and deceleration (Max. 8.0 m/s²).
-
Each vehicle weighs 25,000 kg, with a battery capacity of 640 kWh for sustained operation. The mass breakdown includes 8,600 kg for payload, 3,200 kg for the main body, and 10,000 kg for the tractive system, ensuring a balance of durability, efficiency, and high-speed capability.
Traction Solutions
Magnets

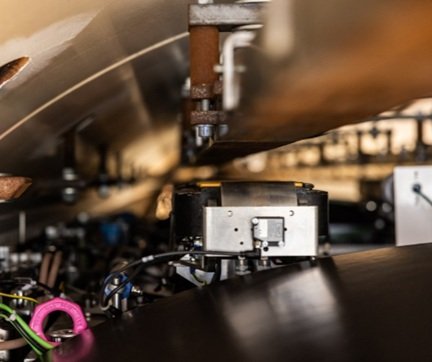

Vacuum-fit (hybrid) magnet units
Our magnets solutions deliver (hybrid) electro-magnetic suspension and propulsion based on minimal drag first and maximum efficiency second.
Sensors
Closed loop airgap control tech

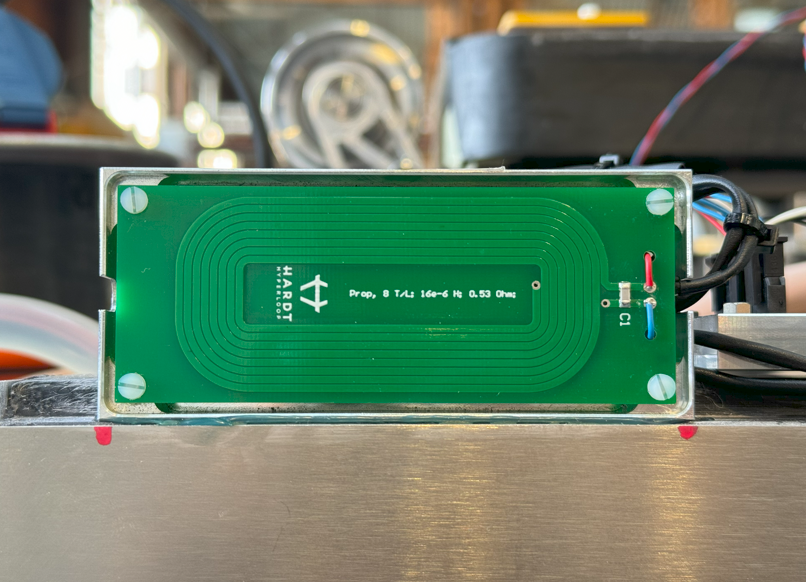

Our sensors solutions provide wide-range real-time gap-sensing and control features to optimize efficiency and passenger comfort within strict safety boundaries.
Drives
Hyperloop spec magnet drive units

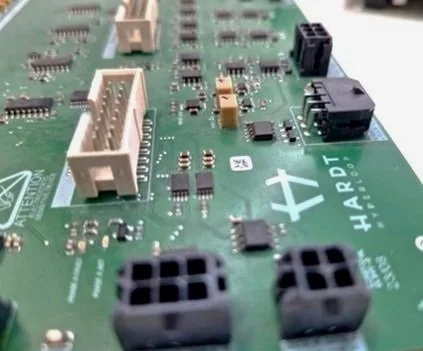

Our drives solutions offer SiC-based magnet drives with maximum EMC-resilience, power density and power-conversion efficiency. The integrated GapGuard MCU offers real-time control.

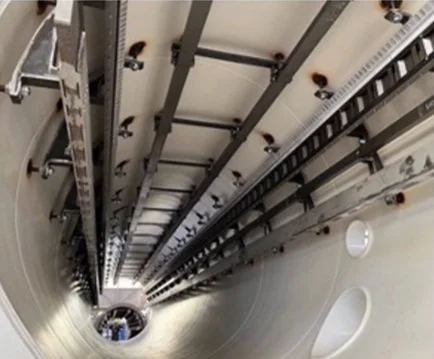

Tracks
Laminated E-steel track sets
Our tracks solutions offer resilient laminated e-steel stacks that maximize efficiency and minimize magnetic drag. Hence, mitigating energy use and thermal issues.
Our Services
At Hardt Hyperloop, we provide application engineering services, from designing and developing hyperloop systems to delivering vehicles and infrastructure. Our expertise extends to route development, where we collaborate with key stakeholders to create efficient, sustainable hyperloop networks.
-
Hardt Hyperloop offers comprehensive application engineering services that encompass the design, development, and implementation of hyperloop systems.
Our expertise includes the application engineering of the hyperloop infrastructure, specific traction solutions, and overall hyperloop system concept design.
We collaborate with industry-leading clients and has a proven track record of successful projects, including the European Hyperloop Center. Our services aim to turn visionary ideas into sustainable transportation solutions, leveraging advanced technologies and innovative approaches to revolutionize mass transit.
-
Hardt Hyperloop's route development services focus on supporting the development of efficient and sustainable hyperloop routes.
Our team of experts collaborates with stakeholders to plan, design, and implement hyperloop networks that connect key locations. We leverage advanced technologies and innovative approaches to minimize environmental impact and optimize operational efficiency.
Hardt Hyperloop's proven track record includes successful projects like a hyperloop route design with Schiphol Airport, and multiple cities/provinces accross the world.
Let us help you.
Reach out for our products or services, and let’s work together to realize your hyperloop project
